BlockManager

BlockManager manages the storage for blocks (chunks of data) that can be stored in memory and on disk.

BlockManager and Stores

BlockManager runs as part of the driver and executor processes.

BlockManager provides interface for uploading and fetching blocks both locally and remotely using various stores (i.e. memory, disk, and off-heap).

Cached blocks are blocks with non-zero sum of memory and disk sizes.

Tip

Use Web UI (esp. Storage and Executors tabs) to monitor the memory used.

Tip

Use spark-submit's command-line options (i.e. --driver-memory for the driver and --executor-memory for executors) or their equivalents as Spark properties (i.e. spark.executor.memory and spark.driver.memory) to control the memory for storage memory.

When External Shuffle Service is enabled, BlockManager uses ExternalShuffleClient to read shuffle files (of other executors).

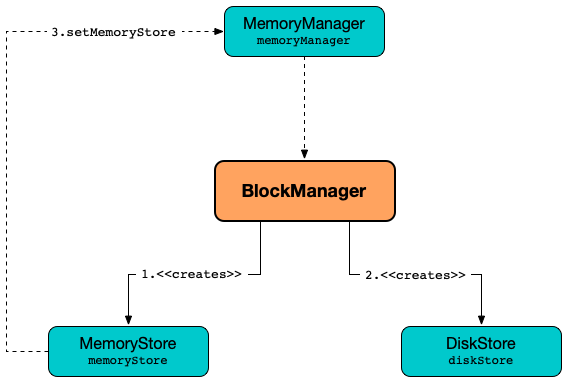

Creating Instance

BlockManager takes the following to be created:

When created, BlockManager sets externalShuffleServiceEnabled internal flag based on spark.shuffle.service.enabled configuration property.

BlockManager then creates an instance of DiskBlockManager (requesting deleteFilesOnStop when an external shuffle service is not in use).

BlockManager creates block-manager-future daemon cached thread pool with 128 threads maximum (as futureExecutionContext).

BlockManager calculates the maximum memory to use (as maxMemory) by requesting the maximum on-heap and off-heap storage memory from the assigned MemoryManager.

BlockManager calculates the port used by the external shuffle service (as externalShuffleServicePort).

BlockManager creates a client to read other executors' shuffle files (as shuffleClient). If the external shuffle service is used an ExternalShuffleClient is created or the input BlockTransferService is used.

BlockManager sets the maximum number of failures before this block manager refreshes the block locations from the driver (as maxFailuresBeforeLocationRefresh).

BlockManager registers a BlockManagerSlaveEndpoint with the input RpcEnv, itself, and MapOutputTracker (as slaveEndpoint).

BlockManager is created when SparkEnv is created (for the driver and executors) when a Spark application starts.

BlockManager and SparkEnv

Initializing BlockManager

initialize(
  appId: String): Unit

initialize requests the BlockTransferService to initialize.

initialize requests the ExternalBlockStoreClient to initialize (if given).

initialize determines the BlockReplicationPolicy based on spark.storage.replication.policy configuration property and prints out the following INFO message to the logs:

Using [priorityClass] for block replication policy

initialize creates a BlockManagerId and requests the BlockManagerMaster to registerBlockManager (with the BlockManagerId, the local directories of the DiskBlockManager, the maxOnHeapMemory, the maxOffHeapMemory and the slaveEndpoint).

initialize sets the internal BlockManagerId to be the response from the BlockManagerMaster (if available) or the BlockManagerId just created.

initialize initializes the External Shuffle Server's Address when enabled and prints out the following INFO message to the logs (with the externalShuffleServicePort):

external shuffle service port = [externalShuffleServicePort]

(only for executors and External Shuffle Service enabled) initialize registers with the External Shuffle Server.

initialize determines the hostLocalDirManager. With spark.shuffle.readHostLocalDisk configuration property enabled and spark.shuffle.useOldFetchProtocol disabled, initialize uses the ExternalBlockStoreClient to create a HostLocalDirManager (with spark.storage.localDiskByExecutors.cacheSize configuration property).

In the end, initialize prints out the following INFO message to the logs (with the blockManagerId):

Initialized BlockManager: [blockManagerId]

initialize is used when:

  • SparkContext is created (on the driver)
  • Executor is created (with isLocal flag disabled)

Registering Executor's BlockManager with External Shuffle Server

registerWithExternalShuffleServer(): Unit

registerWithExternalShuffleServer registers the BlockManager (for an executor) with External Shuffle Service.

registerWithExternalShuffleServer prints out the following INFO message to the logs:

Registering executor with local external shuffle service.

registerWithExternalShuffleServer creates an ExecutorShuffleInfo (with the localDirs and subDirsPerLocalDir of the DiskBlockManager, and the class name of the ShuffleManager).

registerWithExternalShuffleServer uses spark.shuffle.registration.maxAttempts configuration property and 5 sleep time when requesting the ExternalBlockStoreClient to registerWithShuffleServer (using the BlockManagerId and the ExecutorShuffleInfo).

In case of any exception that happen below the maximum number of attempts, registerWithExternalShuffleServer prints out the following ERROR message to the logs and sleeps 5 seconds:

Failed to connect to external shuffle server, will retry [attempts] more times after waiting 5 seconds...

BlockManagerId

BlockManager uses a BlockManagerId for...FIXME

HostLocalDirManager

BlockManager can use a HostLocalDirManager.

Default: (undefined)

BlockReplicationPolicy

BlockManager uses a BlockReplicationPolicy for...FIXME

External Shuffle Service's Port

BlockManager determines the port of an external shuffle service when created.

The port is used to create the shuffleServerId and a HostLocalDirManager.

The port is also used for preferExecutors.

spark.diskStore.subDirectories Configuration Property

BlockManager uses spark.diskStore.subDirectories configuration property to initialize a subDirsPerLocalDir local value.

subDirsPerLocalDir is used when:

Fetching Block or Computing (and Storing) it

getOrElseUpdate[T](
  blockId: BlockId,
  level: StorageLevel,
  classTag: ClassTag[T],
  makeIterator: () => Iterator[T]): Either[BlockResult, Iterator[T]]

Map.getOrElseUpdate

I think it is fair to say that getOrElseUpdate is like getOrElseUpdate of scala.collection.mutable.Map in Scala.

getOrElseUpdate(key: K, op: ⇒ V): V

Quoting the official scaladoc:

If given key K is already in this map, getOrElseUpdate returns the associated value V.

Otherwise, getOrElseUpdate computes a value V from given expression op, stores with the key K in the map and returns that value.

Since BlockManager is a key-value store of blocks of data identified by a block ID that seems to fit so well.

getOrElseUpdate first attempts to get the block by the BlockId (from the local block manager first and, if unavailable, requesting remote peers).

getOrElseUpdate gives the BlockResult of the block if found.

If however the block was not found (in any block manager in a Spark cluster), getOrElseUpdate doPutIterator (for the input BlockId, the makeIterator function and the StorageLevel).

getOrElseUpdate branches off per the result.

For None, getOrElseUpdate getLocalValues for the BlockId and eventually returns the BlockResult (unless terminated by a SparkException due to some internal error).

For Some(iter), getOrElseUpdate returns an iterator of T values.

getOrElseUpdate is used when:

Fetching Block from Local or Remote Block Managers

get[T: ClassTag](
  blockId: BlockId): Option[BlockResult]

get attempts to get the blockId block from a local block manager first before requesting it from remote block managers.

Internally, get tries to get the block from the local BlockManager. If the block was found, you should see the following INFO message in the logs and get returns the local BlockResult.

Found block [blockId] locally

If however the block was not found locally, get tries to get the block from remote block managers. If retrieved from a remote block manager, you should see the following INFO message in the logs and get returns the remote BlockResult.

Found block [blockId] remotely

In the end, get returns "nothing" (i.e. NONE) when the blockId block was not found either in the local BlockManager or any remote BlockManager.

get is used when:

getRemoteValues

getRemoteValues[T: ClassTag](
  blockId: BlockId): Option[BlockResult]

getRemoteValues getRemoteBlock with the bufferTransformer function that takes a ManagedBuffer and does the following:

Fetching Block Bytes From Remote Block Managers

getRemoteBytes(
  blockId: BlockId): Option[ChunkedByteBuffer]

getRemoteBytes getRemoteBlock with the bufferTransformer function that takes a ManagedBuffer and creates a ChunkedByteBuffer.

getRemoteBytes is used when:

Fetching Remote Block

getRemoteBlock[T](
  blockId: BlockId,
  bufferTransformer: ManagedBuffer => T): Option[T]

getRemoteBlock is used for getRemoteValues and getRemoteBytes.

getRemoteBlock prints out the following DEBUG message to the logs:

Getting remote block [blockId]

getRemoteBlock requests the BlockManagerMaster for locations and status of the input BlockId (with the host of BlockManagerId).

With some locations, getRemoteBlock determines the size of the block (max of diskSize and memSize). getRemoteBlock tries to read the block from the local directories of another executor on the same host. getRemoteBlock prints out the following INFO message to the logs:

Read [blockId] from the disk of a same host executor is [successful|failed].

When a data block could not be found in any of the local directories, getRemoteBlock fetchRemoteManagedBuffer.

For no locations from the BlockManagerMaster, getRemoteBlock prints out the following DEBUG message to the logs:

readDiskBlockFromSameHostExecutor

readDiskBlockFromSameHostExecutor(
  blockId: BlockId,
  localDirs: Array[String],
  blockSize: Long): Option[ManagedBuffer]

readDiskBlockFromSameHostExecutor...FIXME

fetchRemoteManagedBuffer

fetchRemoteManagedBuffer(
  blockId: BlockId,
  blockSize: Long,
  locationsAndStatus: BlockManagerMessages.BlockLocationsAndStatus): Option[ManagedBuffer]

fetchRemoteManagedBuffer...FIXME

sortLocations

sortLocations(
  locations: Seq[BlockManagerId]): Seq[BlockManagerId]

sortLocations...FIXME

preferExecutors

preferExecutors(
  locations: Seq[BlockManagerId]): Seq[BlockManagerId]

preferExecutors...FIXME

readDiskBlockFromSameHostExecutor

readDiskBlockFromSameHostExecutor(
  blockId: BlockId,
  localDirs: Array[String],
  blockSize: Long): Option[ManagedBuffer]

readDiskBlockFromSameHostExecutor...FIXME

ExecutionContextExecutorService

BlockManager uses a Scala ExecutionContextExecutorService to execute FIXME asynchronously (on a thread pool with block-manager-future prefix and maximum of 128 threads).

BlockEvictionHandler

BlockManager is a BlockEvictionHandler that can drop a block from memory (and store it on a disk when necessary).

ShuffleClient and External Shuffle Service

BlockManager manages the lifecycle of a ShuffleClient:

The ShuffleClient can be an ExternalShuffleClient or the given BlockTransferService based on spark.shuffle.service.enabled configuration property. When enabled, BlockManager uses the ExternalShuffleClient.

The ShuffleClient is available to other Spark services (using shuffleClient value) and is used when BlockStoreShuffleReader is requested to read combined key-value records for a reduce task.

When requested for shuffle metrics, BlockManager simply requests them from the ShuffleClient.

BlockManager and RpcEnv

BlockManager is given a RpcEnv when created.

The RpcEnv is used to set up a BlockManagerSlaveEndpoint.

BlockInfoManager

BlockManager creates a BlockInfoManager when created.

BlockManager requests the BlockInfoManager to clear when requested to stop.

BlockManager uses the BlockInfoManager to create a MemoryStore.

BlockManager uses the BlockInfoManager when requested for the following:

BlockManager and BlockManagerMaster

BlockManager is given a BlockManagerMaster when created.

BlockManager as BlockDataManager

BlockManager is a BlockDataManager.

BlockManager and MapOutputTracker

BlockManager is given a MapOutputTracker when created.

Executor ID

BlockManager is given an Executor ID when created.

The Executor ID is one of the following:

BlockManagerEndpoint RPC Endpoint

BlockManager requests the RpcEnv to register a BlockManagerSlaveEndpoint under the name BlockManagerEndpoint[ID].

The RPC endpoint is used when BlockManager is requested to initialize and reregister (to register the BlockManager on an executor with the BlockManagerMaster on the driver).

The endpoint is stopped (by requesting the RpcEnv to stop the reference) when BlockManager is requested to stop.

Accessing BlockManager

BlockManager is available using SparkEnv on the driver and executors.

import org.apache.spark.SparkEnv
val bm = SparkEnv.get.blockManager

scala> :type bm
org.apache.spark.storage.BlockManager

BlockTransferService

BlockManager is given a BlockTransferService when created.

BlockTransferService is used as the ShuffleClient when BlockManager is configured with no external shuffle service (based on spark.shuffle.service.enabled configuration property).

BlockTransferService is initialized when BlockManager is.

BlockTransferService is closed when BlockManager is requested to stop.

BlockTransferService is used when BlockManager is requested to fetching a block from or replicate a block to remote block managers.

MemoryManager

BlockManager is given a MemoryManager when created.

BlockManager uses the MemoryManager for the following:

ShuffleManager

BlockManager is given a ShuffleManager when created.

BlockManager uses the ShuffleManager for the following:

DiskBlockManager

BlockManager creates a DiskBlockManager when created.

DiskBlockManager and BlockManager

BlockManager uses the BlockManager for the following:

The BlockManager is available as diskBlockManager reference to other Spark systems.

import org.apache.spark.SparkEnv
SparkEnv.get.blockManager.diskBlockManager

MemoryStore

BlockManager creates a MemoryStore when created (with the BlockInfoManager, the SerializerManager, the MemoryManager and itself as a BlockEvictionHandler).

MemoryStore and BlockManager

BlockManager requests the MemoryManager to use the MemoryStore.

BlockManager uses the MemoryStore for the following:

The MemoryStore is requested to clear when BlockManager is requested to stop.

The MemoryStore is available as memoryStore private reference to other Spark services.

import org.apache.spark.SparkEnv
SparkEnv.get.blockManager.memoryStore

The MemoryStore is used (via SparkEnv.get.blockManager.memoryStore reference) when Task is requested to run (that has finished and requests the MemoryStore to releaseUnrollMemoryForThisTask).

DiskStore

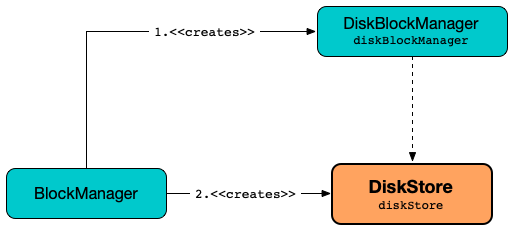

BlockManager creates a DiskStore (with the DiskBlockManager) when created.

DiskStore and BlockManager

BlockManager uses the DiskStore when requested to getStatus, getCurrentBlockStatus, getLocalValues, doGetLocalBytes, doPutBytes, doPutIterator, dropFromMemory, removeBlockInternal.

Performance Metrics

BlockManager uses BlockManagerSource to report metrics under the name BlockManager.

getPeers

getPeers(
  forceFetch: Boolean): Seq[BlockManagerId]

getPeers...FIXME

getPeers is used when BlockManager is requested to replicateBlock and replicate.

Releasing All Locks For Task

releaseAllLocksForTask(
  taskAttemptId: Long): Seq[BlockId]

releaseAllLocksForTask...FIXME

releaseAllLocksForTask is used when TaskRunner is requested to run (at the end of a task).

Stopping BlockManager

stop(): Unit

stop...FIXME

stop is used when SparkEnv is requested to stop.

Getting IDs of Existing Blocks (For a Given Filter)

getMatchingBlockIds(
  filter: BlockId => Boolean): Seq[BlockId]

getMatchingBlockIds...FIXME

getMatchingBlockIds is used when BlockManagerSlaveEndpoint is requested to handle a GetMatchingBlockIds message.

Getting Local Block

getLocalValues(
  blockId: BlockId): Option[BlockResult]

getLocalValues prints out the following DEBUG message to the logs:

Getting local block [blockId]

getLocalValues obtains a read lock for blockId.

When no blockId block was found, you should see the following DEBUG message in the logs and getLocalValues returns "nothing" (i.e. NONE).

Block [blockId] was not found

When the blockId block was found, you should see the following DEBUG message in the logs:

Level for block [blockId] is [level]

If blockId block has memory level and is registered in MemoryStore, getLocalValues returns a BlockResult as Memory read method and with a CompletionIterator for an interator:

  1. Values iterator from MemoryStore for blockId for "deserialized" persistence levels.
  2. Iterator from SerializerManager after the data stream has been deserialized for the blockId block and the bytes for blockId block for "serialized" persistence levels.

getLocalValues is used when:

maybeCacheDiskValuesInMemory

maybeCacheDiskValuesInMemory[T](
  blockInfo: BlockInfo,
  blockId: BlockId,
  level: StorageLevel,
  diskIterator: Iterator[T]): Iterator[T]

maybeCacheDiskValuesInMemory...FIXME

maybeCacheDiskValuesInMemory is used when BlockManager is requested to getLocalValues.

Retrieving Block Data

getBlockData(
  blockId: BlockId): ManagedBuffer

getBlockData is part of the BlockDataManager abstraction.

For a BlockId.md[] of a shuffle (a ShuffleBlockId), getBlockData requests the <> for the shuffle:ShuffleManager.md#shuffleBlockResolver[ShuffleBlockResolver] that is then requested for shuffle:ShuffleBlockResolver.md#getBlockData[getBlockData].

Otherwise, getBlockData <> for the given BlockId.

If found, getBlockData creates a new BlockManagerManagedBuffer (with the <>, the input BlockId, the retrieved BlockData and the dispose flag enabled).

If not found, getBlockData <> that the block could not be found (and that the master should no longer assume the block is available on this executor) and throws a BlockNotFoundException.

NOTE: getBlockData is executed for shuffle blocks or local blocks that the BlockManagerMaster knows this executor really has (unless BlockManagerMaster is outdated).

Retrieving Non-Shuffle Local Block Data

getLocalBytes(
  blockId: BlockId): Option[BlockData]

getLocalBytes...FIXME

getLocalBytes is used when:

  • TorrentBroadcast is requested to core:TorrentBroadcast.md#readBlocks[readBlocks]

  • BlockManager is requested for the <> (of a non-shuffle block)

removeBlockInternal

removeBlockInternal(
  blockId: BlockId,
  tellMaster: Boolean): Unit

removeBlockInternal...FIXME

removeBlockInternal is used when BlockManager is requested to <> and <>.

Stores

A Store is the place where blocks are held.

There are the following possible stores:

  • MemoryStore.md[MemoryStore] for memory storage level.
  • DiskStore.md[DiskStore] for disk storage level.
  • ExternalBlockStore for OFF_HEAP storage level.

Storing Block Data Locally

putBlockData(
  blockId: BlockId,
  data: ManagedBuffer,
  level: StorageLevel,
  classTag: ClassTag[_]): Boolean

putBlockData simply <blockId locally>> (given the given storage level).

putBlockData is part of the BlockDataManager abstraction.

Internally, putBlockData wraps ChunkedByteBuffer around data buffer's NIO ByteBuffer and calls <>.

Storing Block Bytes Locally

putBytes(
  blockId: BlockId,
  bytes: ChunkedByteBuffer,
  level: StorageLevel,
  tellMaster: Boolean = true): Boolean

putBytes makes sure that the bytes are not null and <>.

putBytes is used when:

  • BlockManager is requested to <>

  • TaskRunner is requested to executor:TaskRunner.md#run-result-sent-via-blockmanager[run] (and the result size is above executor:Executor.md#maxDirectResultSize[maxDirectResultSize])

  • TorrentBroadcast is requested to core:TorrentBroadcast.md#writeBlocks[writeBlocks] and core:TorrentBroadcast.md#readBlocks[readBlocks]

doPutBytes

doPutBytes[T](
  blockId: BlockId,
  bytes: ChunkedByteBuffer,
  level: StorageLevel,
  classTag: ClassTag[T],
  tellMaster: Boolean = true,
  keepReadLock: Boolean = false): Boolean

doPutBytes calls the internal helper <> with a function that accepts a BlockInfo and does the uploading.

Inside the function, if the StorageLevel.md[storage level]'s replication is greater than 1, it immediately starts <> of the blockId block on a separate thread (from futureExecutionContext thread pool). The replication uses the input bytes and level storage level.

For a memory storage level, the function checks whether the storage level is deserialized or not. For a deserialized storage level, BlockManager's serializer:SerializerManager.md#dataDeserializeStream[SerializerManager deserializes bytes into an iterator of values] that MemoryStore.md#putIteratorAsValues[MemoryStore stores]. If however the storage level is not deserialized, the function requests MemoryStore.md#putBytes[MemoryStore to store the bytes]

If the put did not succeed and the storage level is to use disk, you should see the following WARN message in the logs:

Persisting block [blockId] to disk instead.

And DiskStore.md#putBytes[DiskStore stores the bytes].

NOTE: DiskStore.md[DiskStore] is requested to store the bytes of a block with memory and disk storage level only when MemoryStore.md[MemoryStore] has failed.

If the storage level is to use disk only, DiskStore.md#putBytes[DiskStore stores the bytes].

doPutBytes requests <> and if the block was successfully stored, and the driver should know about it (tellMaster), the function <>. The executor:TaskMetrics.md#incUpdatedBlockStatuses[current TaskContext metrics are updated with the updated block status] (only when executed inside a task where TaskContext is available).

You should see the following DEBUG message in the logs:

Put block [blockId] locally took [time] ms

The function waits till the earlier asynchronous replication finishes for a block with replication level greater than 1.

The final result of doPutBytes is the result of storing the block successful or not (as computed earlier).

NOTE: doPutBytes is used exclusively when BlockManager is requested to <>.

doPut

doPut[T](
  blockId: BlockId,
  level: StorageLevel,
  classTag: ClassTag[_],
  tellMaster: Boolean,
  keepReadLock: Boolean)(putBody: BlockInfo => Option[T]): Option[T]

doPut executes the input putBody function with a BlockInfo.md[] being a new BlockInfo object (with level storage level) that BlockInfoManager.md#lockNewBlockForWriting[BlockInfoManager managed to create a write lock for].

If the block has already been created (and BlockInfoManager.md#lockNewBlockForWriting[BlockInfoManager did not manage to create a write lock for]), the following WARN message is printed out to the logs:

Block [blockId] already exists on this machine; not re-adding it

doPut <> when keepReadLock flag is disabled and returns None immediately.

If however the write lock has been given, doPut executes putBody.

If the result of putBody is None the block is considered saved successfully.

For successful save and keepReadLock enabled, BlockInfoManager.md#downgradeLock[BlockInfoManager is requested to downgrade an exclusive write lock for blockId to a shared read lock].

For successful save and keepReadLock disabled, BlockInfoManager.md#unlock[BlockInfoManager is requested to release lock on blockId].

For unsuccessful save, <> and the following WARN message is printed out to the logs:

Putting block [blockId] failed

In the end, doPut prints out the following DEBUG message to the logs:

Putting block [blockId] [withOrWithout] replication took [usedTime] ms

doPut is used when BlockManager is requested to <> and <>.

Removing Block From Memory and Disk

removeBlock(
  blockId: BlockId,
  tellMaster: Boolean = true): Unit

removeBlock removes the blockId block from the MemoryStore.md[MemoryStore] and DiskStore.md[DiskStore].

When executed, it prints out the following DEBUG message to the logs:

Removing block [blockId]

It requests BlockInfoManager.md[] for lock for writing for the blockId block. If it receives none, it prints out the following WARN message to the logs and quits.

Asked to remove block [blockId], which does not exist

Otherwise, with a write lock for the block, the block is removed from MemoryStore.md[MemoryStore] and DiskStore.md[DiskStore] (see MemoryStore.md#remove[Removing Block in MemoryStore] and DiskStore.md#remove[Removing Block in DiskStore]).

If both removals fail, it prints out the following WARN message:

Block [blockId] could not be removed as it was not found in either the disk, memory, or external block store

The block is removed from BlockInfoManager.md[].

removeBlock then <> that is used to <> (if the input tellMaster and the info's tellMaster are both enabled, i.e. true) and the executor:TaskMetrics.md#incUpdatedBlockStatuses[current TaskContext metrics are updated with the change].

removeBlock is used when:

  • BlockManager is requested to <>, <> and <>

  • BlockManagerSlaveEndpoint is requested to handle a BlockManagerSlaveEndpoint.md#RemoveBlock[RemoveBlock] message

Removing RDD Blocks

removeRdd(rddId: Int): Int

removeRdd removes all the blocks that belong to the rddId RDD.

It prints out the following INFO message to the logs:

Removing RDD [rddId]

It then requests RDD blocks from BlockInfoManager.md[] and <> (without informing the driver).

The number of blocks removed is the final result.

NOTE: It is used by BlockManagerSlaveEndpoint.md#RemoveRdd[BlockManagerSlaveEndpoint while handling RemoveRdd messages].

Removing All Blocks of Broadcast Variable

removeBroadcast(broadcastId: Long, tellMaster: Boolean): Int

removeBroadcast removes all the blocks of the input broadcastId broadcast.

Internally, it starts by printing out the following DEBUG message to the logs:

Removing broadcast [broadcastId]

It then requests all the BlockId.md#BroadcastBlockId[BroadcastBlockId] objects that belong to the broadcastId broadcast from BlockInfoManager.md[] and <>.

The number of blocks removed is the final result.

NOTE: It is used by BlockManagerSlaveEndpoint.md#RemoveBroadcast[BlockManagerSlaveEndpoint while handling RemoveBroadcast messages].

External Shuffle Server's Address

shuffleServerId: BlockManagerId

When requested to initialize, BlockManager records the location (BlockManagerId) of External Shuffle Service if enabled or simply uses the non-external-shuffle-service BlockManagerId.

The BlockManagerId is used to register an executor with a local external shuffle service.

The BlockManagerId is used as the location of a shuffle map output when:

getStatus

getStatus(
  blockId: BlockId): Option[BlockStatus]

getStatus...FIXME

getStatus is used when BlockManagerSlaveEndpoint is requested to handle GetBlockStatus message.

Re-registering BlockManager with Driver and Reporting Blocks

reregister(): Unit

When executed, reregister prints the following INFO message to the logs:

BlockManager [blockManagerId] re-registering with master

reregister then BlockManagerMaster.md#registerBlockManager[registers itself to the driver's BlockManagerMaster] (just as it was when BlockManager was initializing). It passes the BlockManagerId.md[], the maximum memory (as maxMemory), and the BlockManagerSlaveEndpoint.md[].

reregister will then report all the local blocks to the BlockManagerMaster.md[BlockManagerMaster].

You should see the following INFO message in the logs:

Reporting [blockInfoManager.size] blocks to the master.

For each block metadata (in BlockInfoManager.md[]) it gets block current status and tries to send it to the BlockManagerMaster.

If there is an issue communicating to the BlockManagerMaster.md[BlockManagerMaster], you should see the following ERROR message in the logs:

Failed to report [blockId] to master; giving up.

After the ERROR message, reregister stops reporting.

reregister is used when an Executor was informed to re-register while sending heartbeats.

reportAllBlocks

reportAllBlocks(): Unit

reportAllBlocks...FIXME

Calculate Current Block Status

getCurrentBlockStatus(
  blockId: BlockId,
  info: BlockInfo): BlockStatus

getCurrentBlockStatus gives the current BlockStatus of the BlockId block (with the block's current StorageLevel.md[StorageLevel], memory and disk sizes). It uses MemoryStore.md[MemoryStore] and DiskStore.md[DiskStore] for size and other information.

NOTE: Most of the information to build BlockStatus is already in BlockInfo except that it may not necessarily reflect the current state per MemoryStore.md[MemoryStore] and DiskStore.md[DiskStore].

Internally, it uses the input BlockInfo.md[] to know about the block's storage level. If the storage level is not set (i.e. null), the returned BlockStatus assumes the StorageLevel.md[default NONE storage level] and the memory and disk sizes being 0.

If however the storage level is set, getCurrentBlockStatus uses MemoryStore.md[MemoryStore] and DiskStore.md[DiskStore] to check whether the block is stored in the storages or not and request for their sizes in the storages respectively (using their getSize or assume 0).

NOTE: It is acceptable that the BlockInfo says to use memory or disk yet the block is not in the storages (yet or anymore). The method will give current status.

getCurrentBlockStatus is used when <>, <> or <> or <>.

Reporting Current Storage Status of Block to Driver

reportBlockStatus(
  blockId: BlockId,
  info: BlockInfo,
  status: BlockStatus,
  droppedMemorySize: Long = 0L): Unit

reportBlockStatus is an for <> and if told to re-register it prints out the following INFO message to the logs:

Got told to re-register updating block [blockId]

It does asynchronous reregistration (using asyncReregister).

In either case, it prints out the following DEBUG message to the logs:

Told master about block [blockId]

reportBlockStatus is used when BlockManager is requested to getBlockData, doPutBytes, doPutIterator, dropFromMemory and removeBlockInternal.

Reporting Block Status Update to Driver

def tryToReportBlockStatus(
  blockId: BlockId,
  info: BlockInfo,
  status: BlockStatus,
  droppedMemorySize: Long = 0L): Boolean

tryToReportBlockStatus reports block status update to BlockManagerMaster and returns its response.

tryToReportBlockStatus is used when BlockManager is requested to reportAllBlocks or reportBlockStatus.

Execution Context

block-manager-future is the execution context for...FIXME

ByteBuffer

The underlying abstraction for blocks in Spark is a ByteBuffer that limits the size of a block to 2GB (Integer.MAX_VALUE - see Why does FileChannel.map take up to Integer.MAX_VALUE of data? and SPARK-1476 2GB limit in spark for blocks). This has implication not just for managed blocks in use, but also for shuffle blocks (memory mapped blocks are limited to 2GB, even though the API allows for long), ser-deser via byte array-backed output streams.

BlockResult

BlockResult is a description of a fetched block with the readMethod and bytes.

Registering Task

registerTask(
  taskAttemptId: Long): Unit

registerTask requests the BlockInfoManager to register a given task.

registerTask is used when Task is requested to run (at the start of a task).

Creating DiskBlockObjectWriter

getDiskWriter(
  blockId: BlockId,
  file: File,
  serializerInstance: SerializerInstance,
  bufferSize: Int,
  writeMetrics: ShuffleWriteMetrics): DiskBlockObjectWriter

getDiskWriter creates a DiskBlockObjectWriter (with spark.shuffle.sync configuration property for syncWrites argument).

getDiskWriter uses the SerializerManager.

getDiskWriter is used when:

Recording Updated BlockStatus In Current Task's TaskMetrics

addUpdatedBlockStatusToTaskMetrics(
  blockId: BlockId,
  status: BlockStatus): Unit

addUpdatedBlockStatusToTaskMetrics takes an active TaskContext (if available) and records updated BlockStatus for Block (in the task's TaskMetrics).

addUpdatedBlockStatusToTaskMetrics is used when BlockManager doPutBytes (for a block that was successfully stored), doPut, doPutIterator, removes blocks from memory (possibly spilling it to disk) and removes block from memory and disk.

shuffleMetricsSource: Source

shuffleMetricsSource requests the ShuffleClient for the shuffle metrics and creates a ShuffleMetricsSource with the source name based on spark.shuffle.service.enabled configuration property:

shuffleMetricsSource is used when Executor is created (for non-local / cluster modes).

Replicating Block To Peers

replicate(
  blockId: BlockId,
  data: BlockData,
  level: StorageLevel,
  classTag: ClassTag[_],
  existingReplicas: Set[BlockManagerId] = Set.empty): Unit

replicate...FIXME

replicate is used when BlockManager is requested to doPutBytes, doPutIterator and replicateBlock.

replicateBlock

replicateBlock(
  blockId: BlockId,
  existingReplicas: Set[BlockManagerId],
  maxReplicas: Int): Unit

replicateBlock...FIXME

replicateBlock is used when BlockManagerSlaveEndpoint is requested to handle a ReplicateBlock message.

putIterator

putIterator[T: ClassTag](
  blockId: BlockId,
  values: Iterator[T],
  level: StorageLevel,
  tellMaster: Boolean = true): Boolean

putIterator...FIXME

putIterator is used when:

putSingle Method

putSingle[T: ClassTag](
  blockId: BlockId,
  value: T,
  level: StorageLevel,
  tellMaster: Boolean = true): Boolean

putSingle...FIXME

putSingle is used when TorrentBroadcast is requested to write the blocks and readBroadcastBlock.

doPutIterator

doPutIterator[T](
  blockId: BlockId,
  iterator: () => Iterator[T],
  level: StorageLevel,
  classTag: ClassTag[T],
  tellMaster: Boolean = true,
  keepReadLock: Boolean = false): Option[PartiallyUnrolledIterator[T]]

doPutIterator simply <> with the putBody function that accepts a BlockInfo and does the following:

. putBody branches off per whether the StorageLevel indicates to use a StorageLevel.md#useMemory[memory] or simply a StorageLevel.md#useDisk[disk], i.e.

  • When the input StorageLevel indicates to StorageLevel.md#useMemory[use a memory] for storage in StorageLevel.md#deserialized[deserialized] format, putBody requests <> to MemoryStore.md#putIteratorAsValues[putIteratorAsValues] (for the BlockId and with the iterator factory function). + If the <> returned a correct value, the internal size is set to the value. + If however the <> failed to give a correct value, FIXME

  • When the input StorageLevel indicates to StorageLevel.md#useMemory[use memory] for storage in StorageLevel.md#deserialized[serialized] format, putBody...FIXME

  • When the input StorageLevel does not indicate to use memory for storage but StorageLevel.md#useDisk[disk] instead, putBody...FIXME

. putBody requests the <>

. Only when the block was successfully stored in either the memory or disk store:

  • putBody <> to the <> when the input tellMaster flag (default: enabled) and the tellMaster flag of the block info are both enabled.

  • putBody <> (with the BlockId and BlockStatus)

  • putBody prints out the following DEBUG message to the logs: +

    Put block [blockId] locally took [time] ms

  • When the input StorageLevel indicates to use StorageLevel.md#replication[replication], putBody <> followed by <> (with the input BlockId and the StorageLevel as well as the BlockData to replicate)

  • With a successful replication, putBody prints out the following DEBUG message to the logs: +

    Put block [blockId] remotely took [time] ms

. In the end, putBody may or may not give a PartiallyUnrolledIterator if...FIXME

NOTE: doPutIterator is used when BlockManager is requested to <> and <>.

Dropping Block from Memory

dropFromMemory(
  blockId: BlockId,
  data: () => Either[Array[T], ChunkedByteBuffer]): StorageLevel

dropFromMemory prints out the following INFO message to the logs:

Dropping block [blockId] from memory

dropFromMemory then asserts that the given block is BlockInfoManager.md#assertBlockIsLockedForWriting[locked for writing].

If the block's StorageLevel.md[StorageLevel] uses disks and the internal DiskStore.md[DiskStore] object (diskStore) does not contain the block, it is saved then. You should see the following INFO message in the logs:

Writing block [blockId] to disk

CAUTION: FIXME Describe the case with saving a block to disk.

The block's memory size is fetched and recorded (using MemoryStore.getSize).

The block is MemoryStore.md#remove[removed from memory] if exists. If not, you should see the following WARN message in the logs:

Block [blockId] could not be dropped from memory as it does not exist

It then <> and <>. It only happens when info.tellMaster.

CAUTION: FIXME When would info.tellMaster be true?

A block is considered updated when it was written to disk or removed from memory or both. If either happened, the executor:TaskMetrics.md#incUpdatedBlockStatuses[current TaskContext metrics are updated with the change].

In the end, dropFromMemory returns the current storage level of the block.

dropFromMemory is part of the BlockEvictionHandler abstraction.

releaseLock Method

releaseLock(
  blockId: BlockId,
  taskAttemptId: Option[Long] = None): Unit

releaseLock requests the BlockInfoManager to unlock the given block.

releaseLock is part of the BlockDataManager abstraction.

putBlockDataAsStream

putBlockDataAsStream(
  blockId: BlockId,
  level: StorageLevel,
  classTag: ClassTag[_]): StreamCallbackWithID

putBlockDataAsStream...FIXME

putBlockDataAsStream is part of the BlockDataManager abstraction.

Maximum Memory

Total maximum value that BlockManager can ever possibly use (that depends on <> and may vary over time).

Total available memory:MemoryManager.md#maxOnHeapStorageMemory[on-heap] and memory:MemoryManager.md#maxOffHeapStorageMemory[off-heap] memory for storage (in bytes)

Maximum Off-Heap Memory

Maximum On-Heap Memory

Logging

Enable ALL logging level for org.apache.spark.storage.BlockManager logger to see what happens inside.

Add the following line to conf/log4j.properties:

log4j.logger.org.apache.spark.storage.BlockManager=ALL

Refer to Logging.

Last update: 2020-12-23
